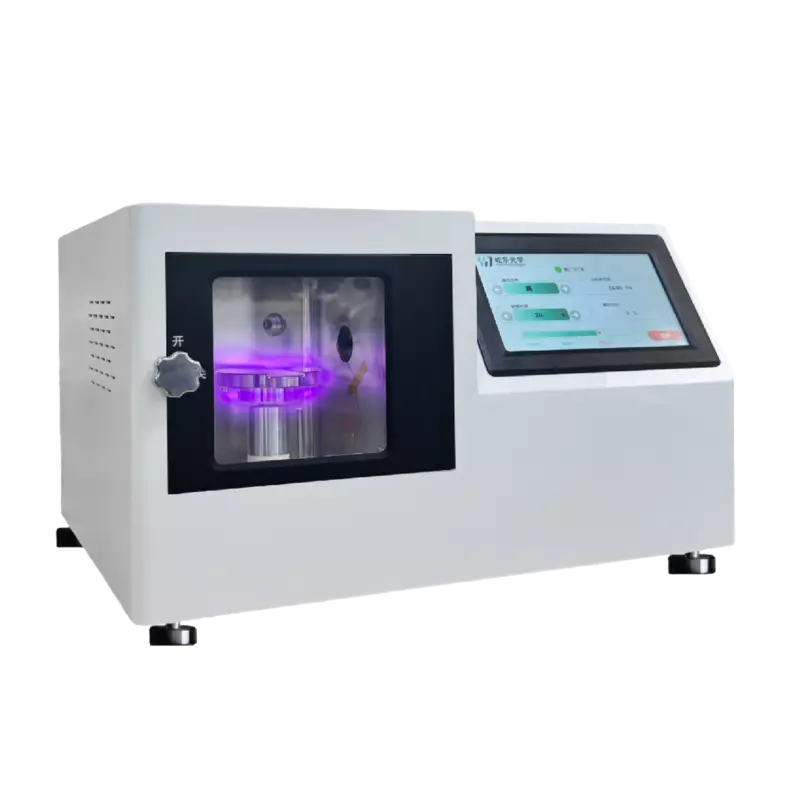

Glow discharge for hydrophilic sample surface modification
- Stable, uniform glow discharge for consistent surface treatment
- Dedicated TEM grid sample stage for precise handling
- Simultaneous cleaning of up to 12 copper grids, improving efficiency
- Gentle gas inlet and exhaust to prevent sample displacement
- Integrated safety interlock with automatic power cut-off when the chamber is opened
SKU: YT0003AX
Product Details
| Overall Dimensions | 435 x 380 x 310mm |
| Dimensions of Chamber | 120 x 120 x 120mm |
| Touch Screen Size | 7 inches |
| Cleaning Power | 1-100W (adjustable) |
| Weight | 15kg |
| Power Supply | 220V; 50Hz |
| Processing Time | 0-180s |
| Stage Size | 70mm diameter |
| Evacuation Time | <1min |
| Z-Axis Movement | 0-20mm |
| Working Gas | Nitrogen, Argon |
| Chamber Material | Aluminium Alloy |
| Vacuum Measurement | Pirani Gauge |
| Operation | Automatic program triggered when preset vacuum conditions are reached, user adjustable parameters |
